Build a Discord Bot to Track the ISS with Napkin

Discord is moving its API more and more towards event-based interactions (webhooks) rather than relying on always-on connections (websockets). This is good news as the internet becomes increasingly serverless, but presents a new challenge for us serverless developers since guides on how to navigate the new APIs are still slim.

Fear not! In this article, we'll use Napkin to demystify how to set up a webhook-based slash command on Discord. To make things more interesting, our bot will actually do something cool: show us the current location of the International Space Station!

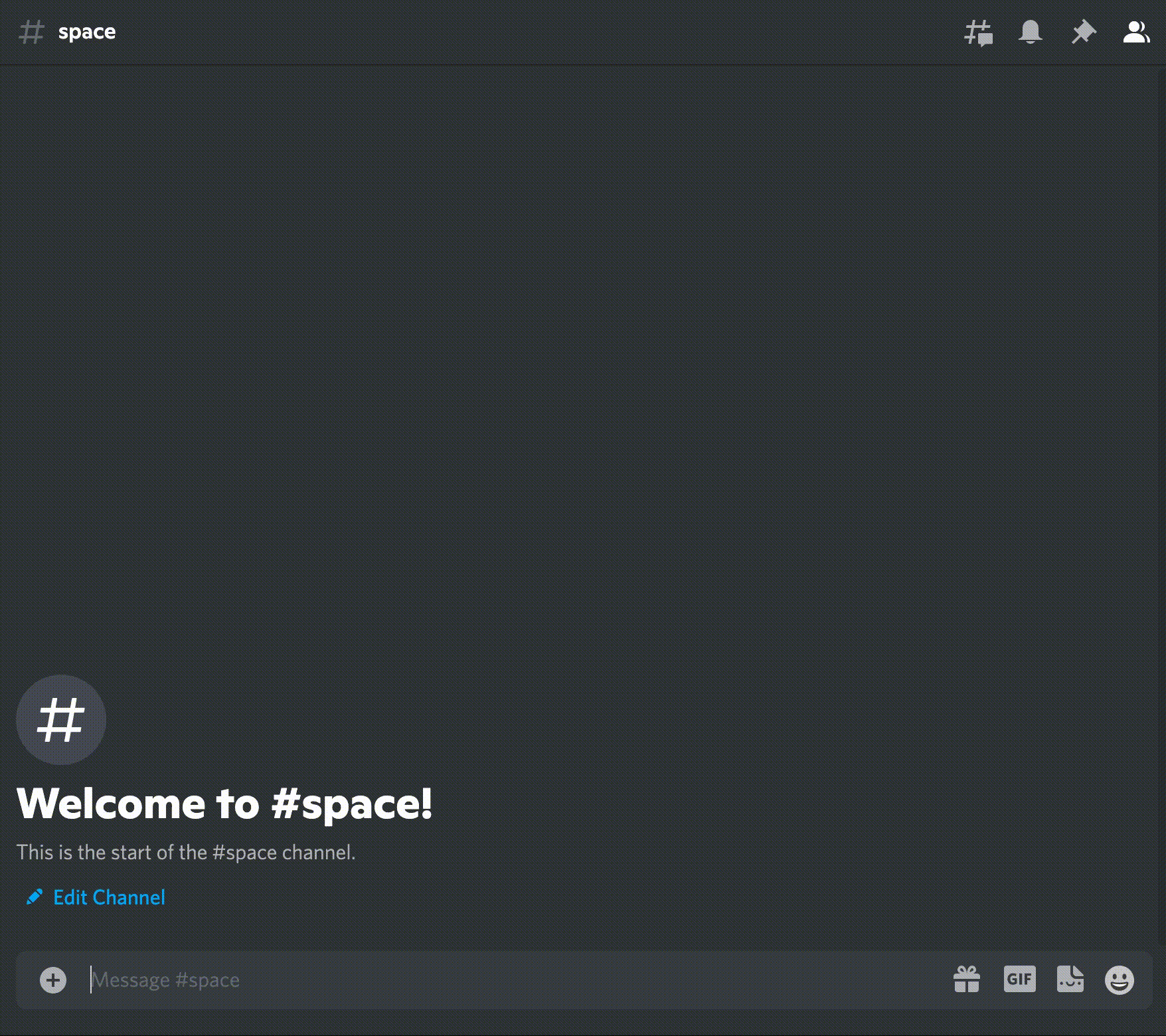

Here's how the bot interaction will look on Discord when we're done.

Want to skip ahead to the final code? You can check it out and fork it by following the links below. Or, continue on as we set everything up step-by-step.

Register Slash Command

Discord Bot Code

• Python Version
• Javascript Version

(Bonus) ISS Map Function

Still here? Awesome! 😄 Let's get started.

Initial Setup

First, we'll create a new Application in the Discord Developer Portal. Head over to https://discord.com/developers/applications and click "New Application" in the top right.

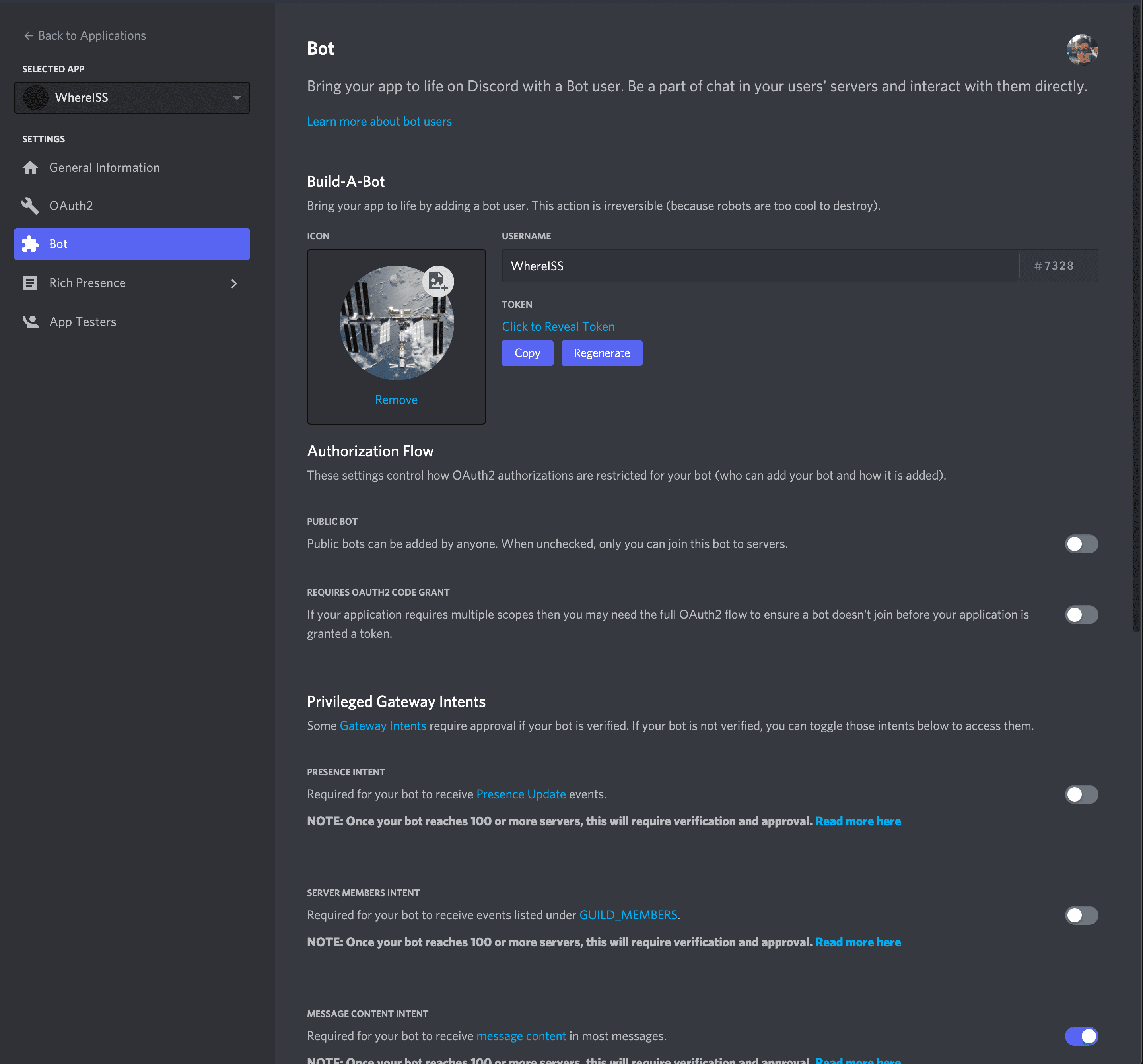

Next we'll add a Bot to our application. Go to

, create a new one, and enable the Message Content Intent (seen at the bottom).

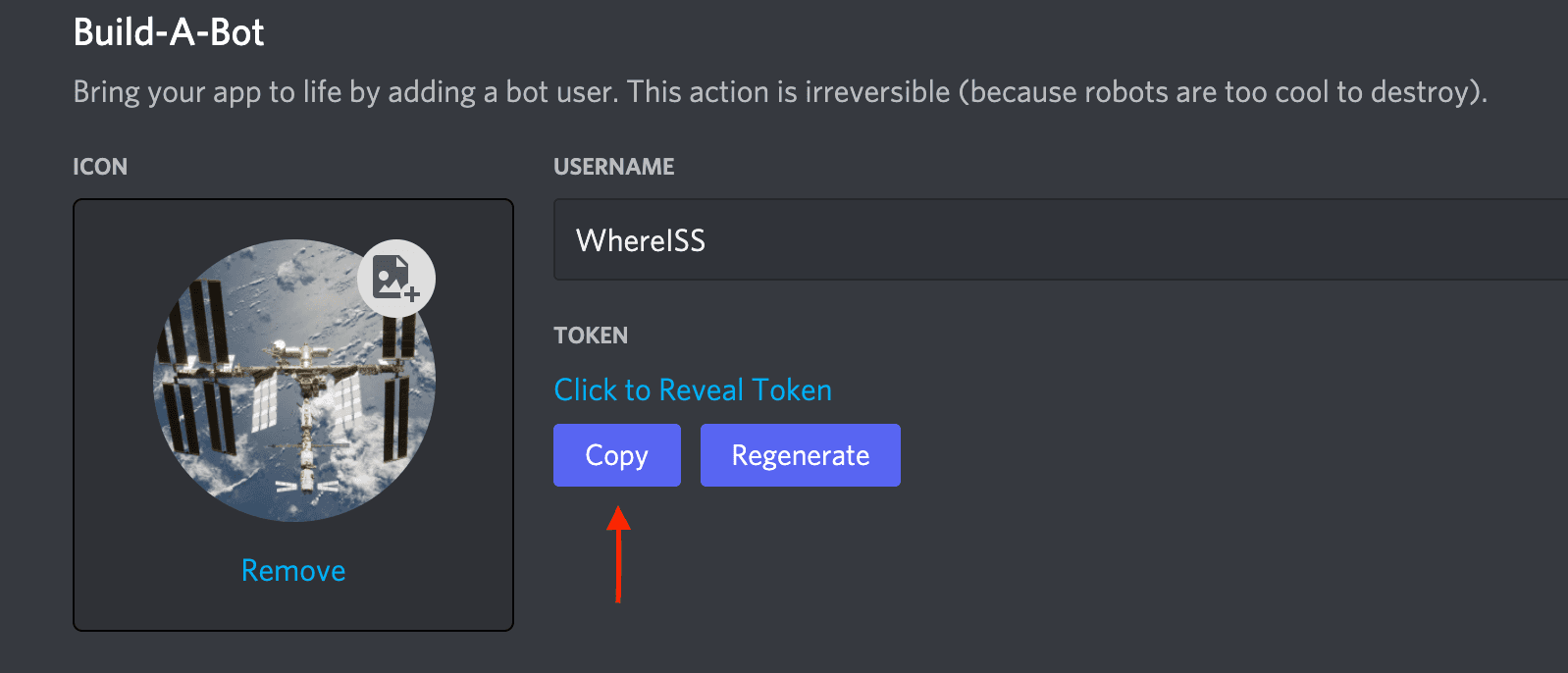

Lastly, copy the bot's Token by clicking the

button. We'll need it for the next step.

Now we have to register a slash command for our new application. To do that, we have to send a HTTP request to the Discord API. You can fork this Napkin function to do that - just copy in your Application ID and Bot Token and run it. For more details on registering commands, check out Discord's official docs.

OK. Let's see what we have so far

Done

• Application created
• Bot created and configured
• Slash command registered

Still To Do

• Write the code
• Point our Application's webhook URL to our Napkin function

Writing the Code

Head over to napkin.io/dashboard/new and create a new Python function (for Javascript, see the example code here).

To start, we'll write the logic to verify Discord's security signatures. Discord uses these signatures to ensure that your bot is capable of identifying legit requests from Discord and denying unauthorized requests from evildoers on the internet.

Discord doesn't mess around here. It will actually try to trick your bot by sending bad signatures from time to time. If your bot fails to deny those requests, Discord takes it offline.

In order to verify those security signatures, Discord recommends using a popular crypto library like PyNacl, so we'll do just that. Let's also throw in the rest of the imports we'll need while we're at it.

from napkin import request, response
import os
import uuid
from nacl.signing import VerifyKey
from nacl.exceptions import BadSignatureError

OK, now the verification part which trips a lot of people (maybe just me) up. We'll use the

module to verify the contents of the the request header sent from Discord. If it's invalid, we respond with a

401

status. If it's valid, we do our bot thing 🤖

# you can find your application public key at
# https://discord.com/developers/applications/<my_app_id>/information
PUBLIC_KEY = os.environ['DISCORD_PUBLIC_KEY']

# The code below handles Discord's verification check for webhook-based interactions.
# To read more about the Discord API's security requirements, see:
# https://discord.com/developers/docs/interactions/receiving-and-responding#security-and-authorization
verify_key = VerifyKey(bytes.fromhex(PUBLIC_KEY))
signature = request.headers["X-Signature-Ed25519"]
timestamp = request.headers["X-Signature-Timestamp"]
body = request.body

message = message = timestamp.encode() + request.data.encode()
try:
    verify_key.verify(message, bytes.fromhex(signature))
    # If we get here without a BadSignatureError, we're good!
    response.status_code = 200

        # response logic to go here...
except BadSignatureError:
    # In this case, we failed verification due to one of the following:
    # -----------------------------------------------------------------
    # - Discord is testing our bot to make sure we fail invalid signatures
    # - An unauthorized request is being made to our bot from somewhere on the internet
    response.status_code = 401
    response.body = "Bad Signature"

Remember how I mentioned Discord sends requests to your bot just to ensure it does verification properly? It does that via a certain type of HTTP request that the API Reference calls a PING request. Request types from Discord are marked in the request JSON body's

field. According to the docs, if we receive a request where

type

equals 1, it's a PING request, and we should respond with a simple JSON object containing

{"type": 1}

to acknowledge it.

# https://discord.com/developers/docs/interactions/receiving-and-responding
if body["type"] == 1: # type 1 is a Discord verification check (PING)
    response.body = {'type': 1}

With that code added, we can now set our webhook URL in the developer portal!

Set the Webhook URL

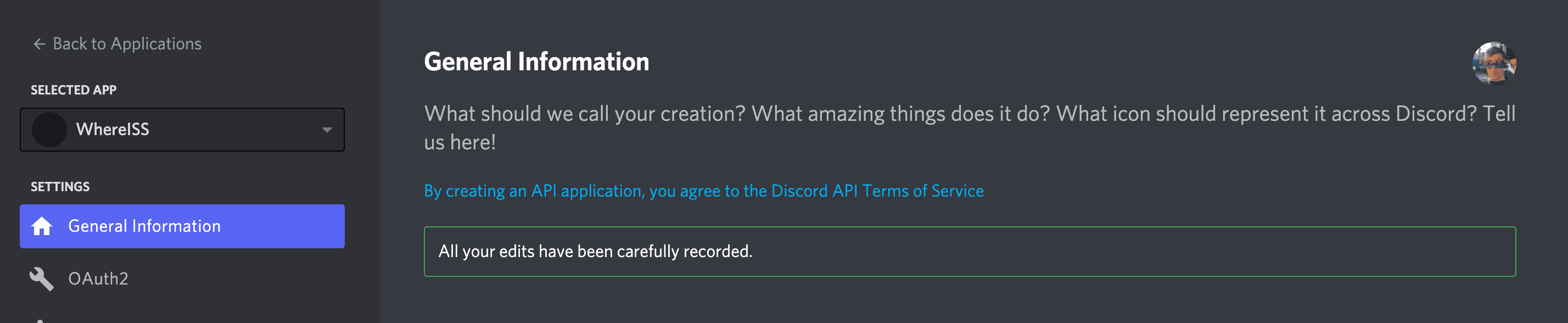

Make sure your code is deployed, then copy the function URL. Go back to the Discord Developer Portal and paste the URL under

. Save changes and Discord will test our bot to make sure it verifies signatures correctly. You should see a confirmation message.

We can actually go to our Napkin function logs and see that Discord has performed the test. Go to your function's Event Logs and you should see 1 or more PING requests from Discord. If they really wanted to test you, you might even see them sending a bad signature in one of the requests and your function responding with a

.

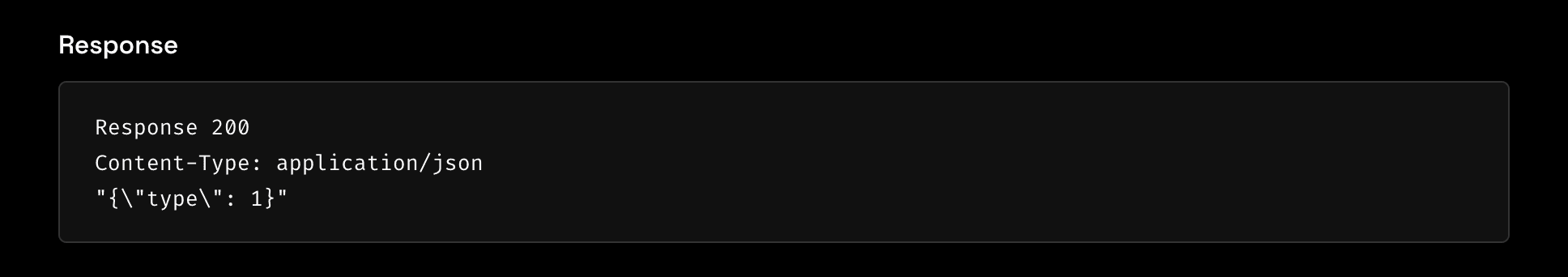

Succesful PING request

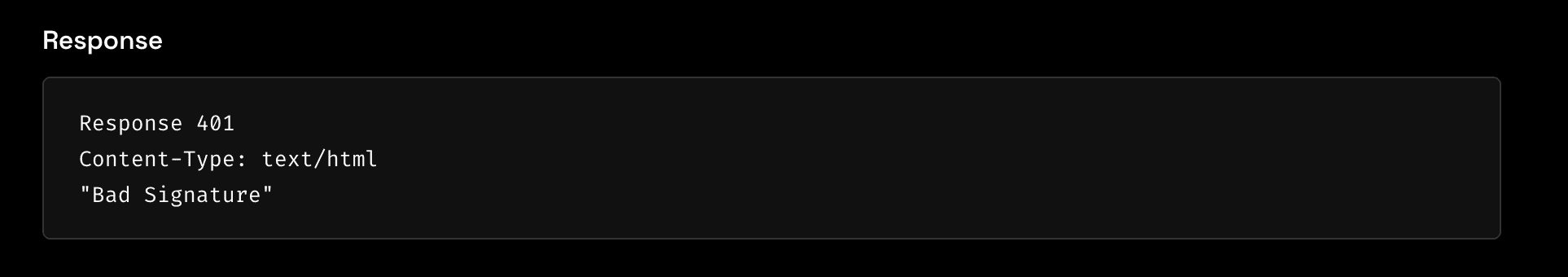

Failed verification. Nice try, Discord.

OK. Time for the final piece. The actual slash command response. It's actually super simple.

if body["type"] == 1: # type 1 is a Discord verification check
    response.body = {'type': 1}

elif body["type"] == 2: # type 2 is a slash command interaction
    response.body = {
        "type": 4, # type 4 = CHANNEL_MESSAGE_WITH_SOURCE
        "data": {
            "embeds": [{
                "title": ":red_circle: Current ISS Location",
                "image": {
                    # add a random uuid argument to prevent Discord from caching image
                    # You can see and fork the iss-map code at
                    # https://www.napkin.io/n/61bb5e0bab3848a3
                    "url": f"https://napkin-examples.npkn.net/iss-map?id={uuid.uuid4()}"
                }
            }]
        }
    }

In the interest of separation of concerns, I've split the code that plots the position of the ISS into a separate function called

. If you're interested in how that code works, feel free to check it out and fork it here! As for the bot code, we simply include the iss-map function URL as part of the embed in our response message.

The final code for the bot should now look like this.

from napkin import request, response
import os
import uuid
from nacl.signing import VerifyKey
from nacl.exceptions import BadSignatureError

# you can find your application public key at
# https://discord.com/developers/applications/<my_app_id>/information
PUBLIC_KEY = os.environ['DISCORD_PUBLIC_KEY']

# The code below handles Discord's verification check for webhook-based interactions.
# To read more about the Discord API's security requirements, see:
# https://discord.com/developers/docs/interactions/receiving-and-responding#security-and-authorization
verify_key = VerifyKey(bytes.fromhex(PUBLIC_KEY))
signature = request.headers["X-Signature-Ed25519"]
timestamp = request.headers["X-Signature-Timestamp"]
body = request.body

message = message = timestamp.encode() + request.data.encode()
try:
    verify_key.verify(message, bytes.fromhex(signature))
    # If we get here without a BadSignatureError, we're good!
    response.status_code = 200

    # what we do now depends on the Interaction Type that Discord sends
    # https://discord.com/developers/docs/interactions/receiving-and-responding
    if body["type"] == 1: # type 1 is a Discord verification check
        response.body = {'type': 1}

    elif body["type"] == 2: # type 2 is a slash command interaction
        response.body = {
            "type": 4, # type 4 = CHANNEL_MESSAGE_WITH_SOURCE
            "data": {
                "embeds": [{
                    "title": ":red_circle: Current ISS Location",
                    "image": {
                        # add a random uuid argument to prevent Discord from caching image
                        # You can see and fork the iss-map code at
                        # https://www.napkin.io/n/61bb5e0bab3848a3
                        "url": f"https://napkin-examples.npkn.net/iss-map?id={uuid.uuid4()}"
                    }
                }]
            }
        }
except BadSignatureError:
    # In this case, we failed verification due to one of the following:
    # -----------------------------------------------------------------
    # - Discord is testing our bot to make sure we fail invalid signatures
    # - An unauthorized request is being made to our bot from somewhere on the internet
    response.status_code = 401
    response.body = "Bad Signature"

Now hit "Deploy", head over to Discord, and try it out!

Have more questions? Other examples you want to see? Let us know on (where else?) our Discord!

Happy building 🛰️
